Kali inside VirtualBox (Guest VM)

This guide is about virtualizing Kali Linux inside of VirtualBox, allowing you to have a Kali VM. This is a great way to use Kali, as it is completely separate from the host, allows you to interact with other VMs (as well as the host machine and other machines on the network), and allows you to revert to snapshots.

You may wish to follow our other guide if you are trying to install VirtualBox on Kali Linux (as a host).

The guide below is what we use to generate our pre-made Kali Linux VirtualBox images. You may alter this to your needs. We always generate the images using the latest version of VirtualBox.

You may need to enable virtualization in your BIOS/UEFI for (e.g. Intel VT-x/AMD-V)

Wizard

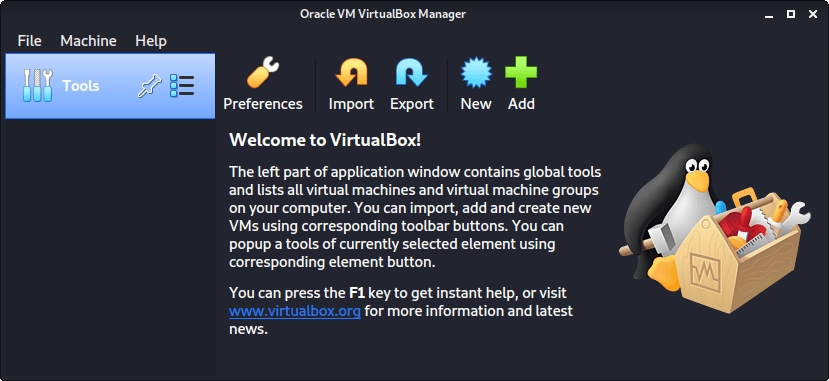

Upon starting up VirtualBox, select β€œNew” (Machine -> New).

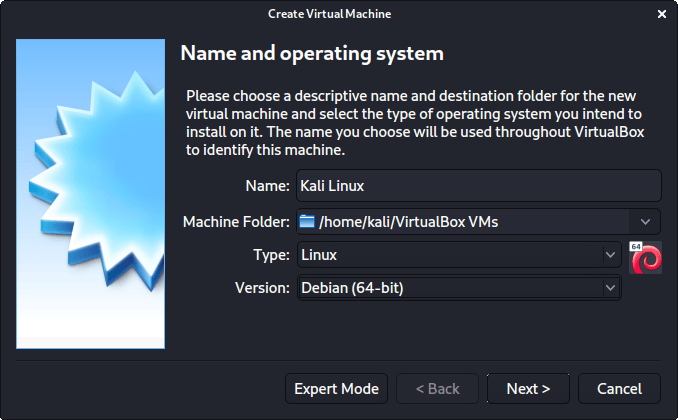

The next screen is β€œName and operating system” which is where you name the VM. This name is also used in any filenames (such as the configuration, hard disk and snapshot - which isn’t changed from this point).

We are keeping it generic in this guide (as Kali is a rolling distribution, and we update it), however for our releases, we use the version number in the name as it is a fixed release (kali-linux-YYYY.N-vbox-ARCH. Example: kali-linux-2022.4-vbox-amd64).

For the β€œType”, we set it as Linux. For the β€œVersion”, we are going to be using the x64 desktop image, so we are going to select Debian (64-bit).

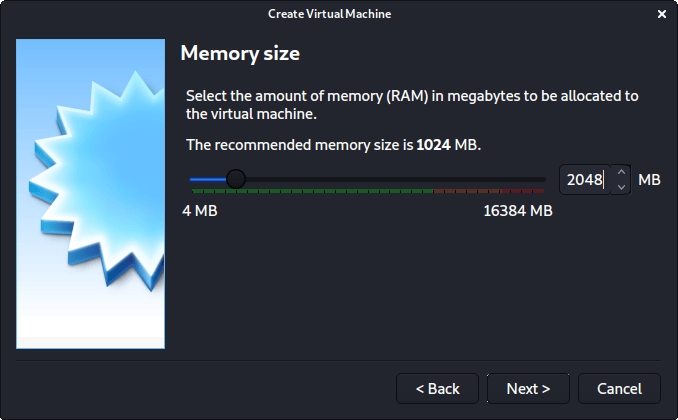

β€œMemory size” is the next section, where we can define how much RAM to use. Again, the higher the amount of RAM, the more applications can be open and at increased performance. Various tools inside of Kali can be demanding of resources. When we make the general VMs, we select 2048 MB (2GB) for RAM, but we often increase this for our personal machines as we have high-performing devices with spare RAM which Kali can utilize.

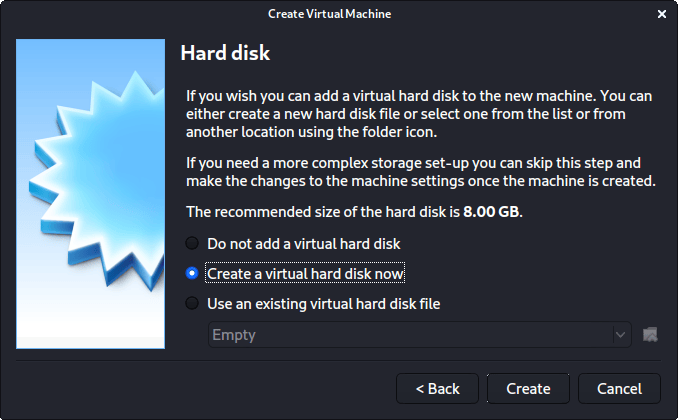

This screen below, β€œHard disk”, allows us to Create a new virtual disk now.

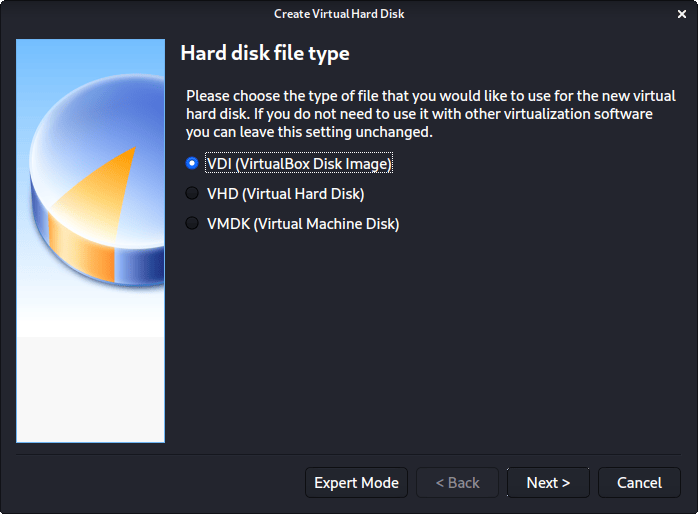

For the β€œHard disk file type”, we select VDI (VirtualBox Disk Image) (and its the default option).

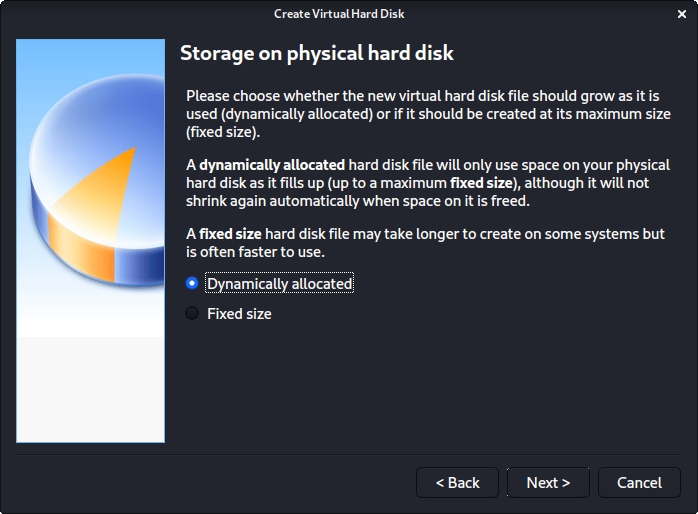

For the following screen, β€œStorage on physical hard disk”, we go with the default option of Dynamically allocated.

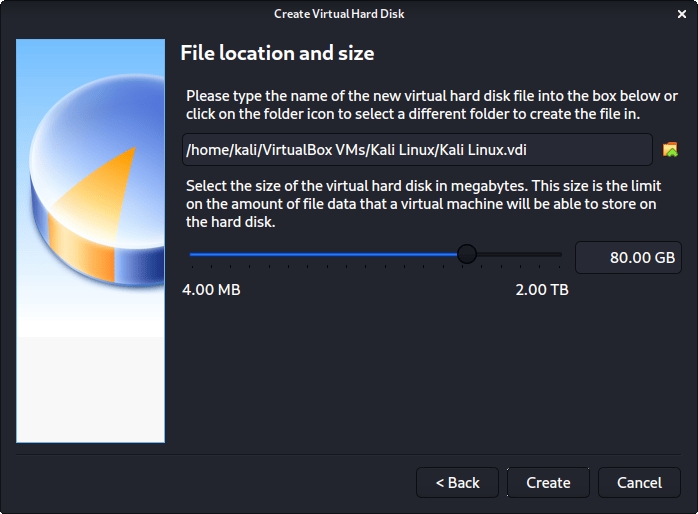

Now with β€œFile location and size”, we can now define how large the virtual hard disk will be. We use 80.00 GB for our VMs.

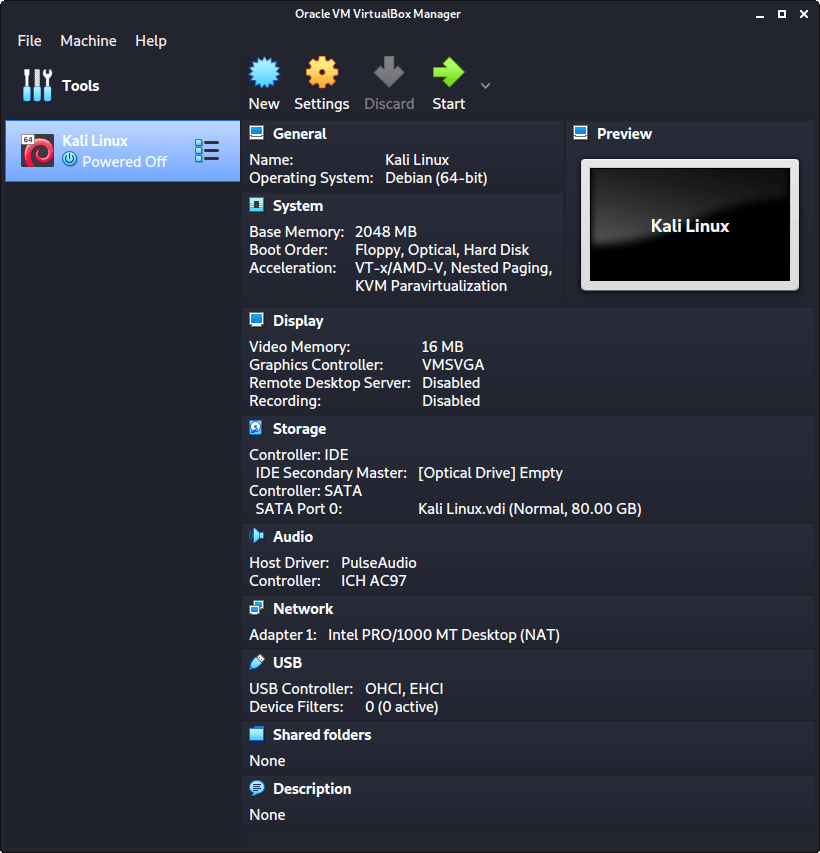

After clicking on β€œCreate”, the wizard is complete.

Now we click on β€œSettings”, to customize the VM further.

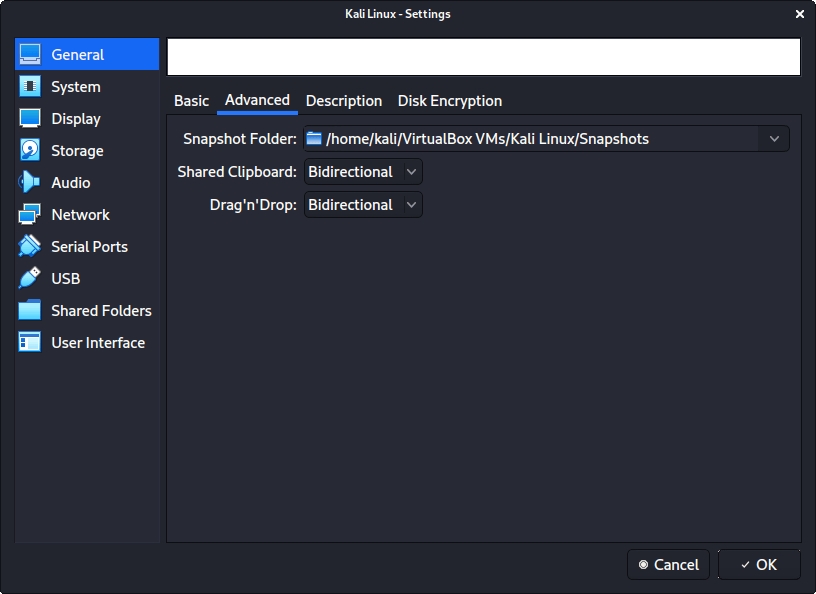

In β€œGeneral” -> β€œAdvanced”, we make sure to set β€œShared Clipboard” to bidirectional, as well as β€œDrag’n’Drop” to bidirectional

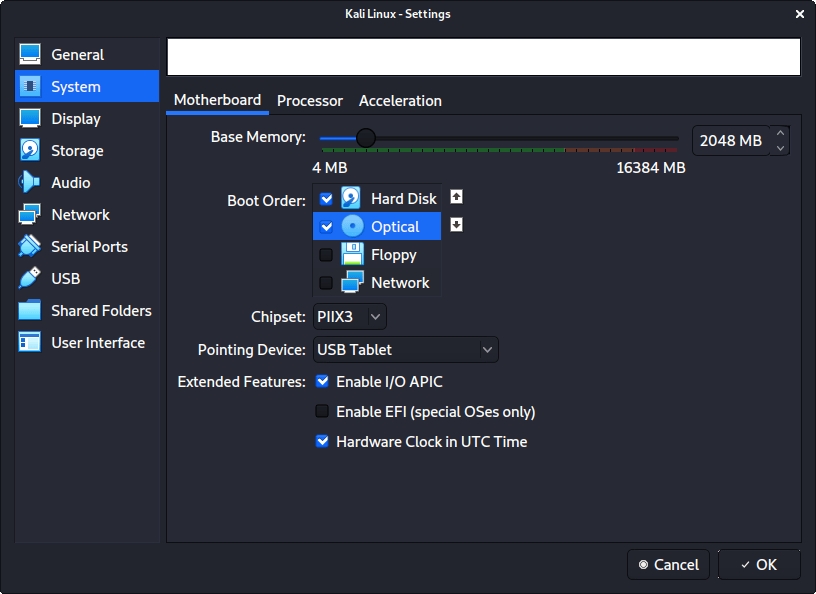

In β€œSystem” -> β€œMotherboard”, we change the β€œBoot Order” to make sure Hard Disk is top and Optical is the second. Everything else is disabled.

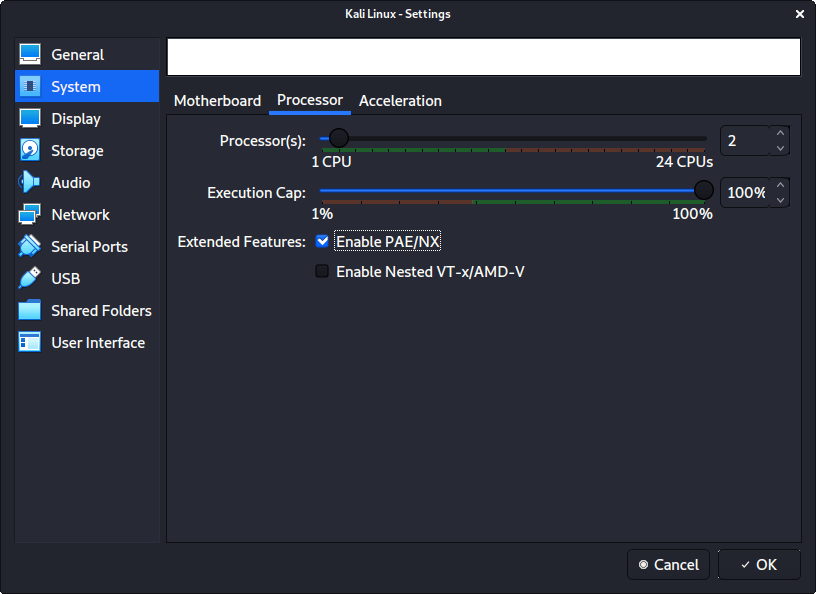

In β€œSystem” -> β€œProcessor”, we increase the β€œProcessor(s)” to be 2.

At the same time, we also enable β€œExtended Features” for Enable PAE/NX.

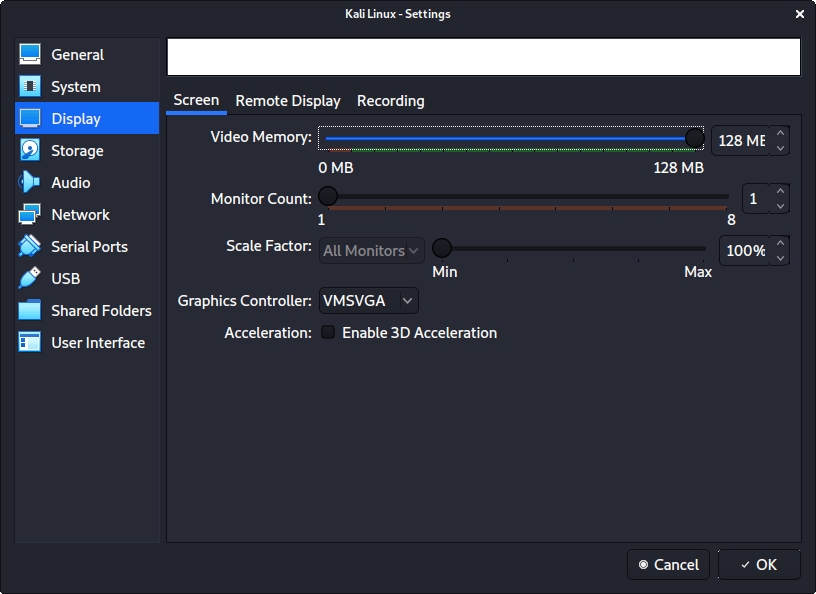

In β€œDisplay” -> β€œScreen”, we make sure to have β€œVideo Memory” set to 128 MB

Another item to point out is to make sure that β€œAccelerated 3D graphics” is disabled, as people have reported that causes issues.

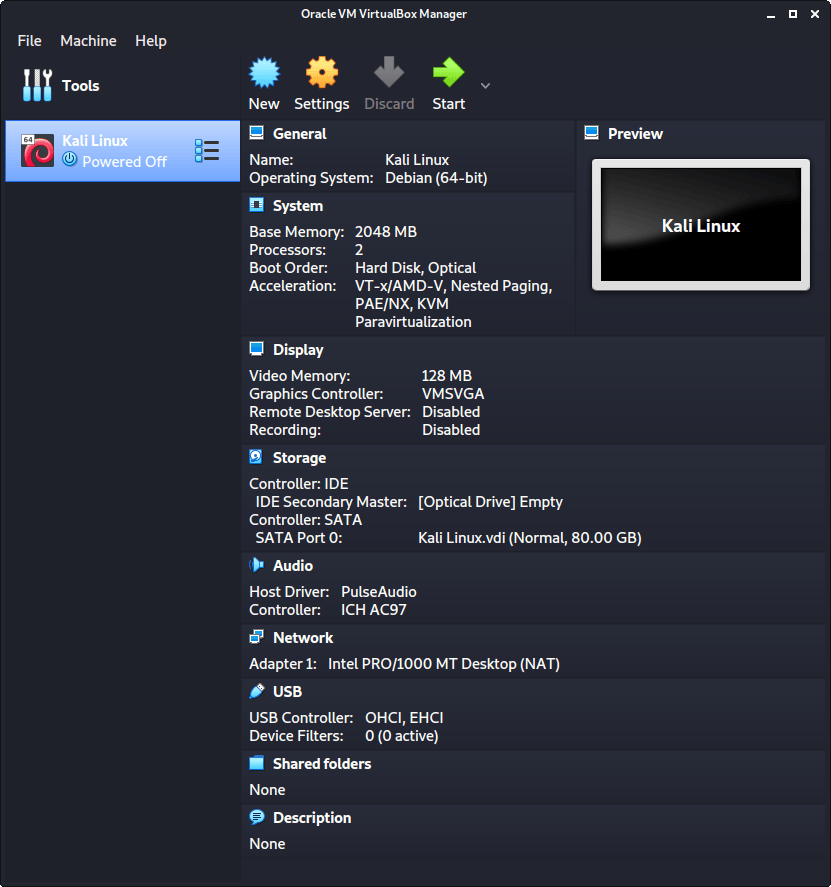

The final settings view looks like the following:


When we are ready to go, press β€œStart”.

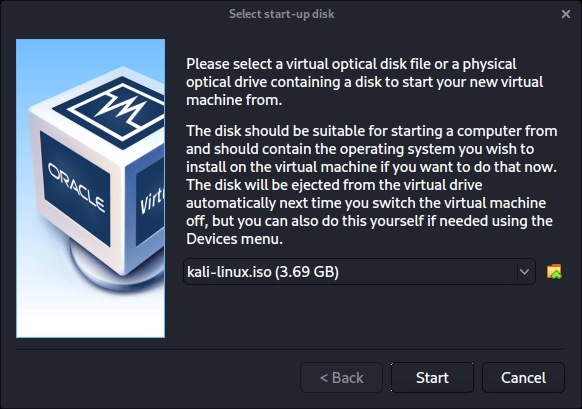

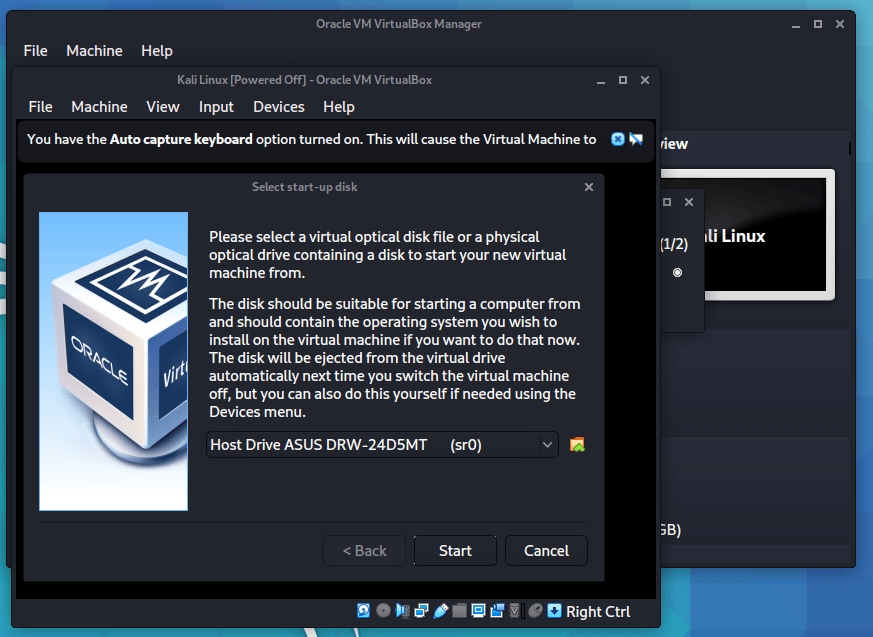

The first time we run it, we will get a prompt saying do we wish to mount an image to use as a β€œstart-up disk”. We want to use our Kali image, rather than a physical drive, so we select the icon to the side of the drop down.

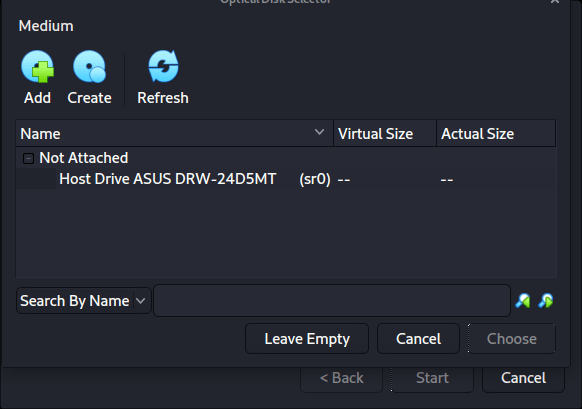

A new pop up will open, β€œOptical Disk Selector”. We will now press β€œAdd”, then navigate to where our ISO is located.

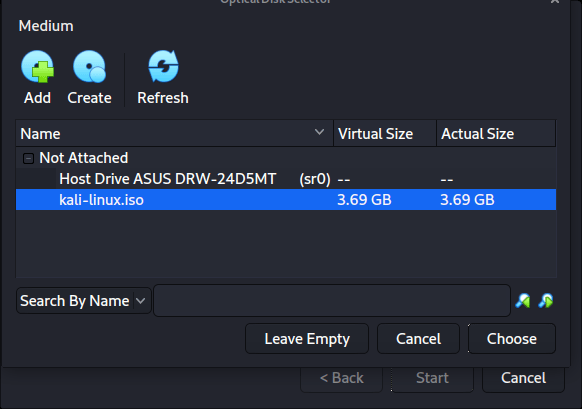

After pressing β€œOpen”, we can see its been added, so we make sure its selected and press β€œChoose”.


All that is left now to do is press β€œStart”.


After all this is done, we save, start up the VM, and then continue installing Kali Linux as we normally would for a bare metal install.

During Kali Linux setup process, the install wizard should detect if its inside a VM. If it is, should then automatically install any additional tools (such as virtualbox-guest-x11) to give a better user experience. If you want to manually re-install it, you can see our VirtualBox Guest Guide.
